1550 cfm (365 psi) / 1350 cfm (508 psi) High Pressure Rigsafe / Safe Area Air Compressor

Features
  • Two-stage units:
    • 43.9m³/min (1550 cfm) at 25 bar (365 psi)
    • 38.23m³/min (1350 cfm) at 35 bar (508 psi)
  • Caterpillar 765HP Tier 2 C18TT Diesel Engine
  • Aftercooler with Water Separator
  • Cold Weather Package Rated to -14°F / -25°C Starting Temperature
  • Electric Block Heater
  • Drill Air Xpert Regulation System
  • Fuel Xpert System
  • External Fuel Connection
  • Dual Certification CE & ASME
  • ASME / CRN / AS1210 Certified Pressure Vessel
  • Emergency Stop Button
  • Spill Free Frame
  • Centralized Fluid Drains
  • Sound Attenuated Enclosure
  • Safety Shutdowns and Warning Indicator Light
  • Tandem Axle “Fast Track” Trailer
  • 240 Gallon Fuel Tank



Options
  • Experienced personnel providing a complete operational package including: hook-up & commissioning, servicing, re-fueling and multiple installation assistance
  • Pressure reducing and non return valves
  • Pressure maintaining valve

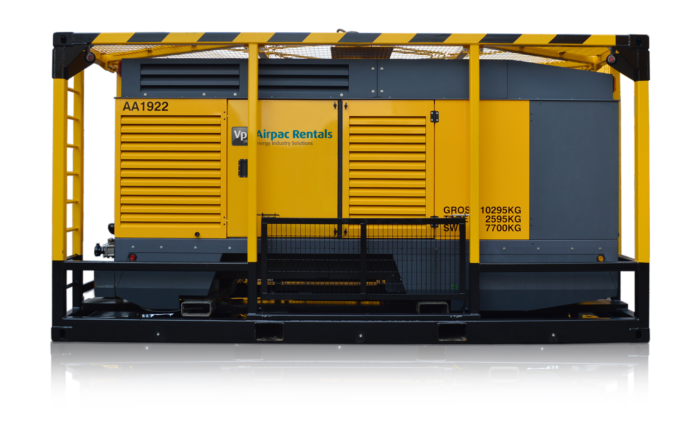

Airpac Bukom’s range of Atlas Copco XRVS 1550 High Pressure Air Compressors are two-stage units, capable of producing volumes of 43.9m³/min (1550 cfm) with delivered pressure of 25 bar (365 psi) or 38.23m³/min (1350 cfm) at 35 bar (508 psi).

The range is fitted with battery, spark arrestors and overspeed protection to safe area specification and consists one low pressure and one high pressure air end, a diesel engine, a cooling circuit, air/oil separation and control systems.

Emergency Shutdown (ESD) is available on all models to provide instant shutdown in the event of gas detection or similar hazards.

When supplied as a package with booster compressors and air dryers they are ideal for pipeline dewatering and drying projects as well as LNG Module & Pipework Testing.

Airpac Bukom provide a full range of ancillary equipment to ensure air quality to appliance requirement.
