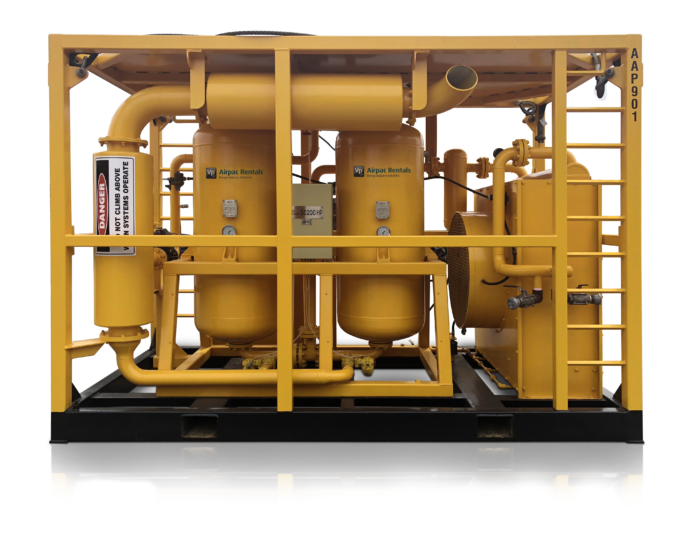

2450 cfm (435 psi) Multi Pressure Desiccant Dryer

Features & Benefits

Airpac Bukom’s range of high pressure Desiccant Dryers are a complete package, incorporating:

  • A twin tower heatless adsorbent dryer unit
  • Integral aftercooler with condensate separator and auto drain
  • Two stage oil removal filtration with auto drains and final dust filter
  • Back pressure maintaining valve

Options
  • 2 inch air hoses
  • Use of additional aftercoolers

Airpac Bukom's SD 200 Multi Pressure Desiccant Dryers provide three volume and pressure variants:

  • 69.3m³/min (2450 scfm) at 28 - 30 barg (406 - 435 psig)
  • 62.9m³/min (2200 scfm) at 24 - 26 barg (348 - 377 psig)
  • 39.6m³/min (1400 scfm) at 7 - 10 barg (101 - 145 psig)

Please see the relevant datasheet for full specification, product details will vary depending on the Airpac Bukom regional office it is supplied from.
