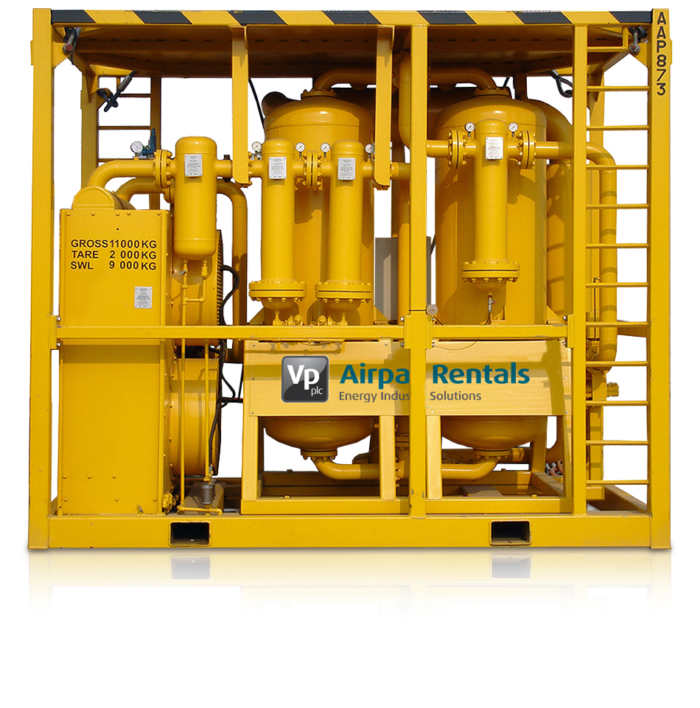

3350 cfm (435 psi) Multi Pressure Desiccant Dryer

Features & Benefits

Mounted in a certified lifting frame for transport and protection, Airpac Bukom’s range of high pressure Desiccant Dryers are a complete package, incorporating:

  • A twin tower heatless adsorbent dryer unit
  • Integral aftercooler with condensate separator and auto drain
  • Two stage oil removal filtration with auto drains and final dust filter
  • Back pressure maintaining valve

Airpac Bukom's SD 200L Multi Pressure Desiccant Dryer provides three volume and pressure variants:

  • 94.8m³/min (3350 scfm) at 28 - 30 barg (406 - 435 psig)
  • 90.6m³/min (3200 scfm) at 24 - 26 barg (348 - 377 psig)
  • 48.9m³/min (1730 scfm) at 7 - 10 barg (101 - 145 psig)

Please see the relevant datasheet for full specification, product details will vary depending on the Airpac Bukom regional office it is supplied from.
