4.5 MMbtu Rigsafe / Safe Area Steam Generator

Features & Benefits
  • Steam vents and safety valve vents mounted away from passing personnel
  • Internal intrinsically safe lighting enables safe operation and maintenance in all conditions
  • High and low water levels, high-pressure steam and flame failure shutdowns are fitted as standard as safety and protection measures
  • Gas Detection (propane, methane and H₂S)
  • Airpac Bukom’s multi-skilled operators ensure safe efficient operation of a steam compressor package in Well test contracts and steam only supply in other applications

Options
  • Steam Traps
  • Additional Steam Hose length available upon request

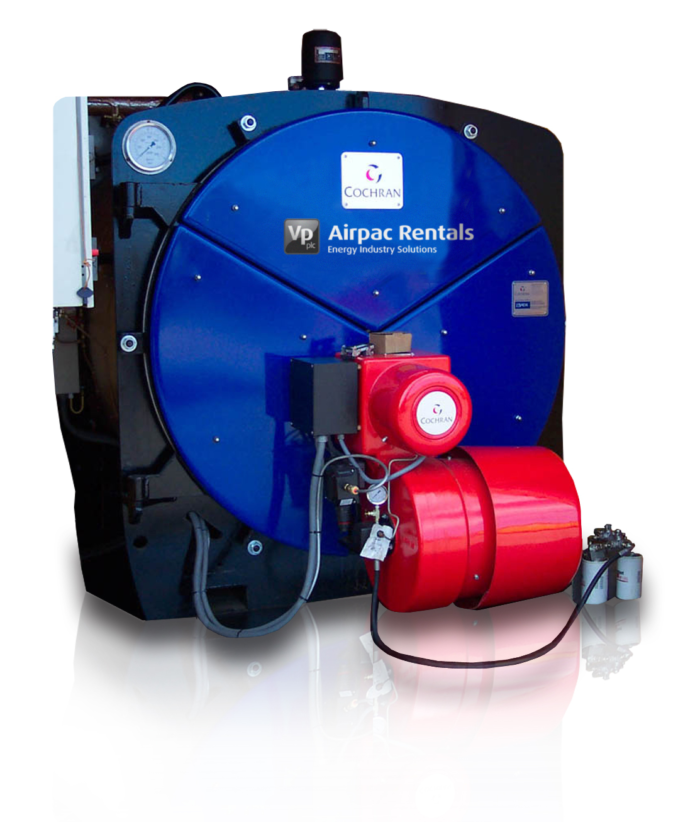

Airpac Bukom's fleet of 4.5 MMbtu Steam Generators provide steam output of 2000kgs per hour (4,500,000 Btu) and have a working pressure of 10.3 barg (150 psig).

When supplied as a package with Air Compressors or Heat Exchangers they are ideal for well testing operations. They are also suitable for standby or replacement of installed boiler systems during maintenance, oil flow control at well or terminal and in industrial applications.

Installed in purpose built containers to DNV 2.7-1, these fully enclosed units are delivered with internal water tanks, a water softening plant and either internal or external fuel tanks in order to meet all site or rig requirements. Each unit also contains 200 feet of steam hose consisting of 25 feet lengths, together with a comprehensive spares kit. An on board Emergency Shutdown System is fitted as standard ensuring instant safe shutdown should gas or a similar hazard be detected or encountered.

The range offers internal locking, which enhances security and prevents intervention by unqualified personnel. The electrical panel is secured by anti-vibration mounts, which protects the sensitive components during transportation.
