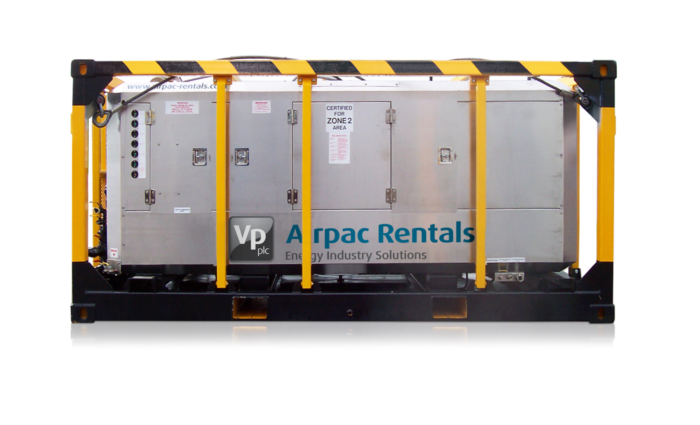

750 cfm (150 psi) Zone ll Air Compressor

Features & Benefits:
  • Complies to BP200/OMCA MEC1/EN 1834-1 Zone II open deck hazardous area flameproof specification
  • Inbuilt aftercooler
  • DNV 2.7-1 lifting specification
  • Multiple units can be safely double stacked using ISO twistlocks for economy of deck space
  • Vibration and overspeed valves
  • High engine water, compressor oil and discharge temperature shutdowns
  • Low engine oil shutdown
  • Low oil pressure
  • Emergency stop button
  • Spark arrestors
  • Air starter
  • Anti static fan belts and blades
  • Exhaust manicooler supplied with flame traps
  • Exhaust extensions to redirect exhaust gases when stacked
  • External fuel fill point

Options:
  • Experienced offshore engineering personnel offering machine servicing, re-fuelling and multiple installation assistance
  • Can be supplied with 24V, 110V or 240V Yellow Alert Shutdown System
  • Pressure reducing and non return valves
  • Multiple outlets
  • Stacking access equipment
  • Gas detection equipment
  • Can be supplied with a 230V Electric Air Compressor to assist pneumatic start up


Airpac Bukom's 750 cfm Zone II Air Compressor offers volumes of up to 21.2m³/min (750 scfm) with a pressure rating of up to 10.3 barg (150 psig). This unit comes complete with an inbuilt aftercooler.

Mounted in a protective DNV 2.7-1 certified lifting cage with built in drip trays and the ability to stack, the range offers excellent space efficiency on deck and in confined space applications.

The compressor is fitted as standard with pneumatic starting, cooling fan and controls, a Pyroban exhaust gas cooler (ensuring surface temperature does not rise above 200°C), a spark arrestor and an automatic engine overspeed shutdown, to safeguard against the unlikely event of gas ingestion.

Delivered air is after cooled and moisture separated prior to compressor outlet, thus reducing friction loss in delivery lines.

Airpac Bukom Zone II Compressors are suitable for hazardous area operation in both onshore and offshore environments.
