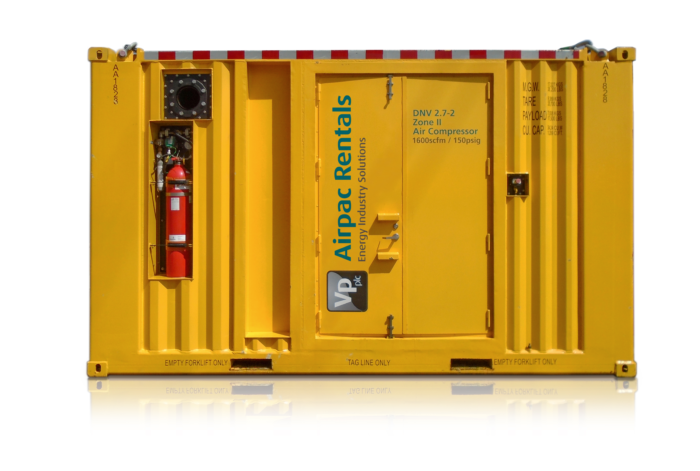

1600 cfm (150 psi) Zone II DNV 2.7-2 Air Compressor

Features & Benefits
  • Complies to new DNV 2.7-2 standard
  • ATEX 94/9/EC certified for hazardous area operation
  • DNV 2.7-1 lifting specification
  • Operational in high ambients +45°C
  • Small footprint producing high volume
  • Stackable offshore container with ISO twist locks
  • Control panel externally mounted
  • Emergency stop button
  • Spark arrestors
  • Noise reduction insulation
  • Internal EX lighting
  • CE compliant
  • Optional pneumatic/ battery start
  • Anti static fan belts and blades
  • Active Pyroban system - no maintenance to flame traps
  • Forklift pockets for ease of movement
  • Fire shutdown system with self contained fire suppression
  • Safety shutdown systems with gas detection via Pyroban 3GP
  • External fuelling

Options
  • Experienced offshore engineering personnel offering machine operation, servicing, re-fuelling and multiple installation assistance
  • Can be supplied with 24V, 110V or 240V Yellow Alert Shutdown System
  • Pressure reducing and non return valves
  • Multiple outlets

With a capacity of 45m³/min (1600 scfm) and rating of up to 10.3 barg (150 psig) the new DNV 2.7-2 Zone II  Air Compressor delivers more air to enable higher rates of productivity. This allows customers to meet the time critical demands of offshore fabric maintenance and well test programmes.

Airpac Bukom's new 1600 scfm Zone II Compressors are specified for worldwide operations, both onshore and offshore, working at ambient temperatures of +45°C.

The 1600 scfm Air Compressor has optional pneumatic or battery starting options, an active Pyroban system (meaning no flame trap maintenance), gas detection and a self contained fire suppression system.

The diesel driven 1600 scfm Zone II unit is housed in a fully ATEX approved 94/9/EC, protective DNV 2.7-2 galvanised steel container certified for Zone II hazardous area operation. Along with forklift pockets and twistlock points this provides greater flexibility for transportation and stacking on site.

Airpac Bukom Oilfield Services operates one of the largest fleets of Zone II Air Compressors in the oil and gas industry. The 1600 scfm units complement existing rental  range of 400, 750 and 1000 scfm Zone II models.
