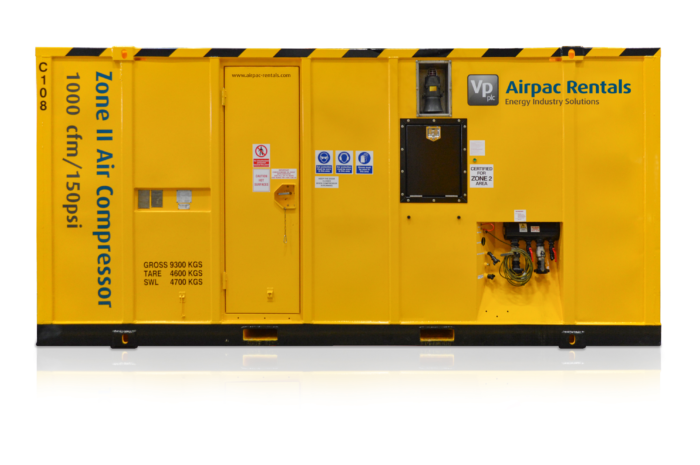

1000 cfm (150 psi) Zone ll DNV 2.7-1 Air Compressor

Features & Benefits:
  • Complies to BP200/OMCA MEC1/EN 1834-1 Zone II open deck hazardous area flameproof specification
  • ATEX 94/9/EC certified for hazardous area operation
  • DNV 2.7-1 lifting specification
  • Stackable offshore container with ISO twistlocks
  • Control panel externally mounted
  • Vibration and overspeed valves
  • High engine water, compressor oil and discharge temperature shutdowns
  • Low engine oil shutdown
  • Low oil pressure
  • Emergency stop button
  • Spark arrestors
  • Noise reduction insulation
  • Internal EX lighting
  • CE compliant
  • Air starter
  • Anti static fan belts and blades
  • Exhaust manicooler supplied with flame traps
  • Forklift pockets for ease of movement
  • Aftercooled
  • New exhaust wash system

Options:
  • Experienced offshore engineering personnel offering machine servicing, re-fuelling and multiple installation assistance
  • Can be supplied with 24V, 110V or 240V Yellow Alert Shutdown System
  • Pressure reducing and non return valves
  • Multiple outlets
  • Stacking access equipment
  • Gas detection equipment
  • Can be supplied with a 230V Electric Air Compressor to assist pneumatic start up

With a capacity of 28m³/min (1000 scfm) and a pressure rating of up to 10.3 barg (150 psig) the 1000 cfm Zone II ATEX DNV containerised Air Compressor delivers more air to enable higher rates of productivity, allowing customers to meet the time critical demands of offshore operations.

The diesel driven 1000 cfm Zone II unit is housed in a fully ATEX approved 94/9/EC, protective DNV 2.7-1 container certified for Zone II hazardous area operation. Along with forklift pockets and twistlock points this provides greater flexibility for transportation and stacking on site.

The 1000 cfm Zone II Compressor is fitted as standard with pneumatic starting, cooling fan and controls, a Pyroban exhaust gas cooler (ensuring surface temperature does not rise above 200°C), a spark arrestor and an automatic engine overspeed shutdown, to safeguard against the unlikely event of gas ingestion.

Airpac Bukom Zone II Compressors are suitable for hazardous area operation in both onshore and offshore environments.
